APF MP-1000 amd Imagination Machine
Carts - Technical Images


All of these pictures were taken by Ward Shrake and originally posted to the
APF Yahoo Message Board in the summer of 2009.  Thanks, Ward!

APF BASIC

APF BASIC
APF BASIC

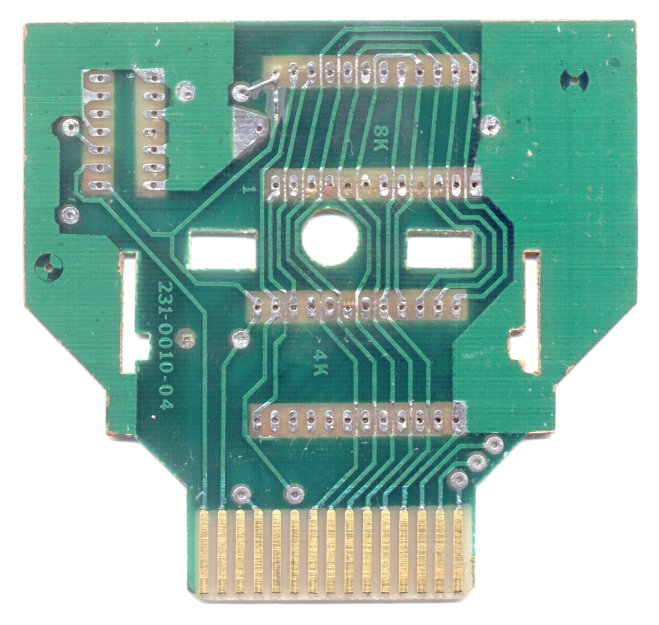

Scan of the bare PC board in a BASIC cartridge.
Component side

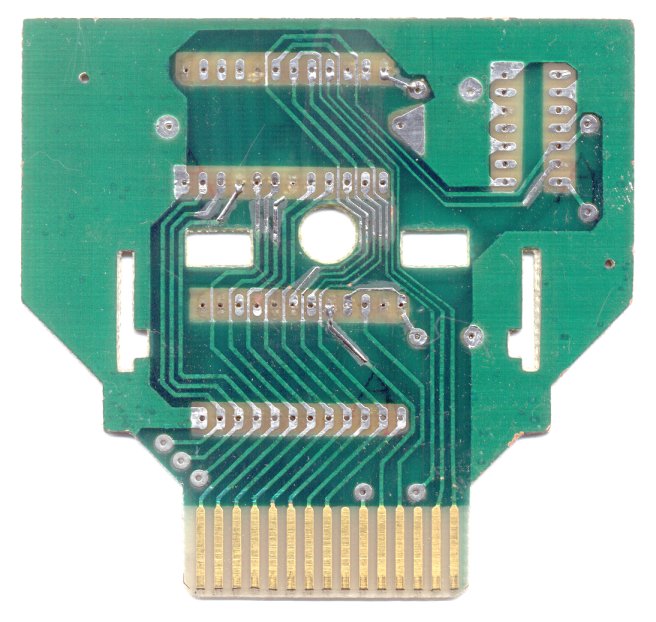

Scan of the bare PC board in a BASIC cartridge.
Solder side
APF BASIC 03

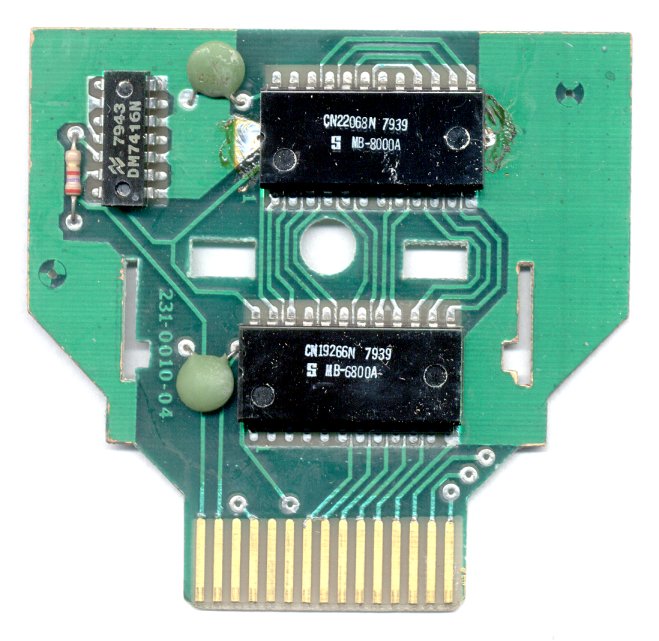

Scan of the populated PC board, in a BASIC cartridge.
Component side.


APF BIOS

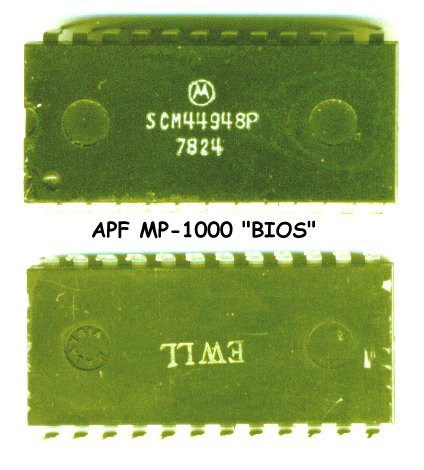

APF BIOS Chip
An image of a BIOS chip from an MP-1000A;
serial number 102375.


Baseball

Baseball 01
Baseball 02

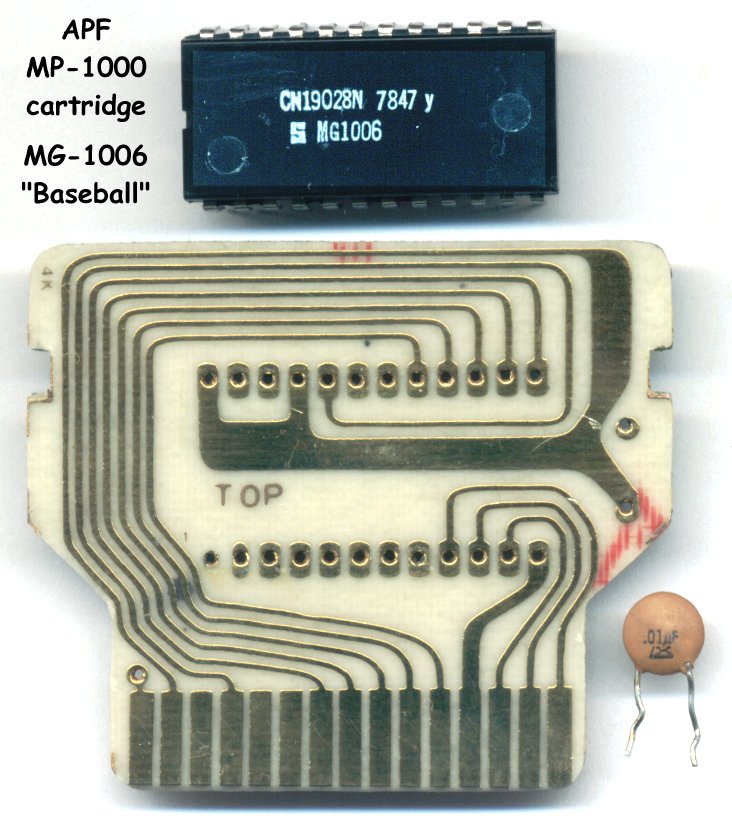

Component side of cart innards for MG-1006 "Baseball"

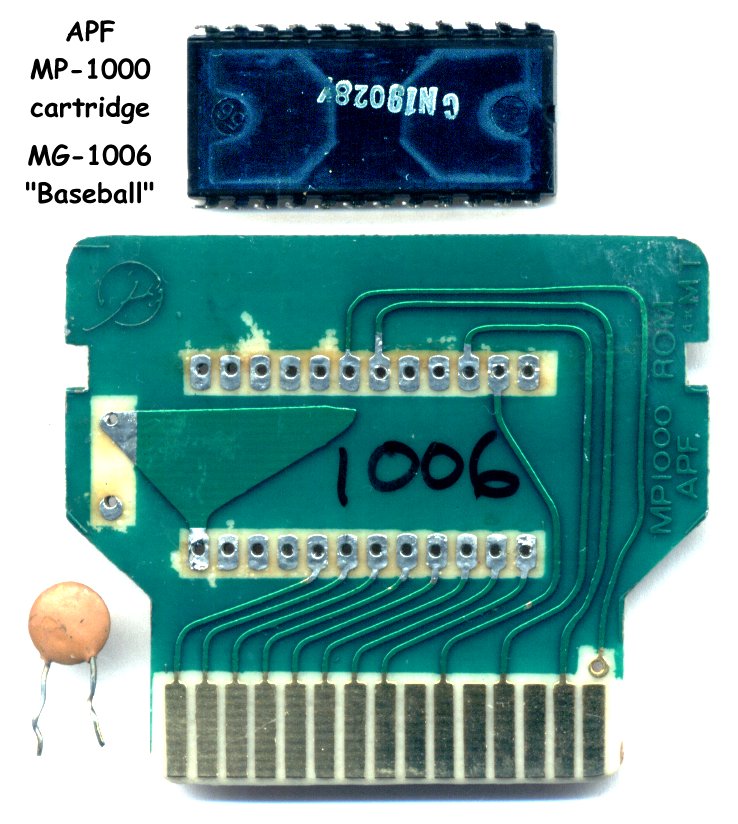

Solder side of cart innards for MG-1006 "Baseball"".
(Hand-written "1006" on board is my doing.)


Blackjack

Blackjack 01
Blackjack 02

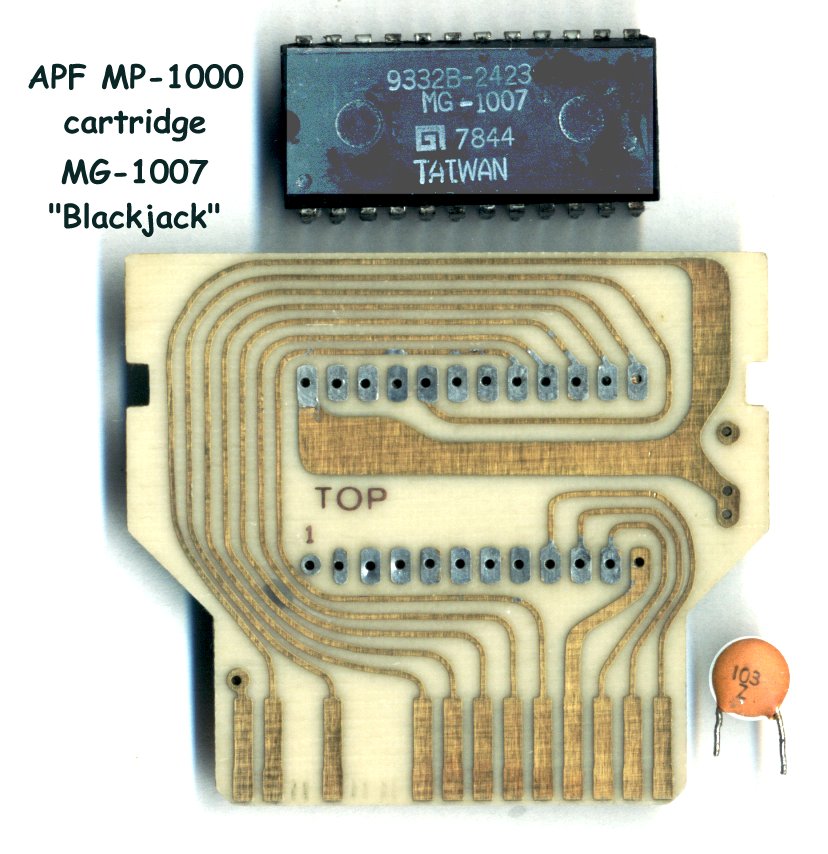

Component side of cart innards for MG-1007 "Blackjack"

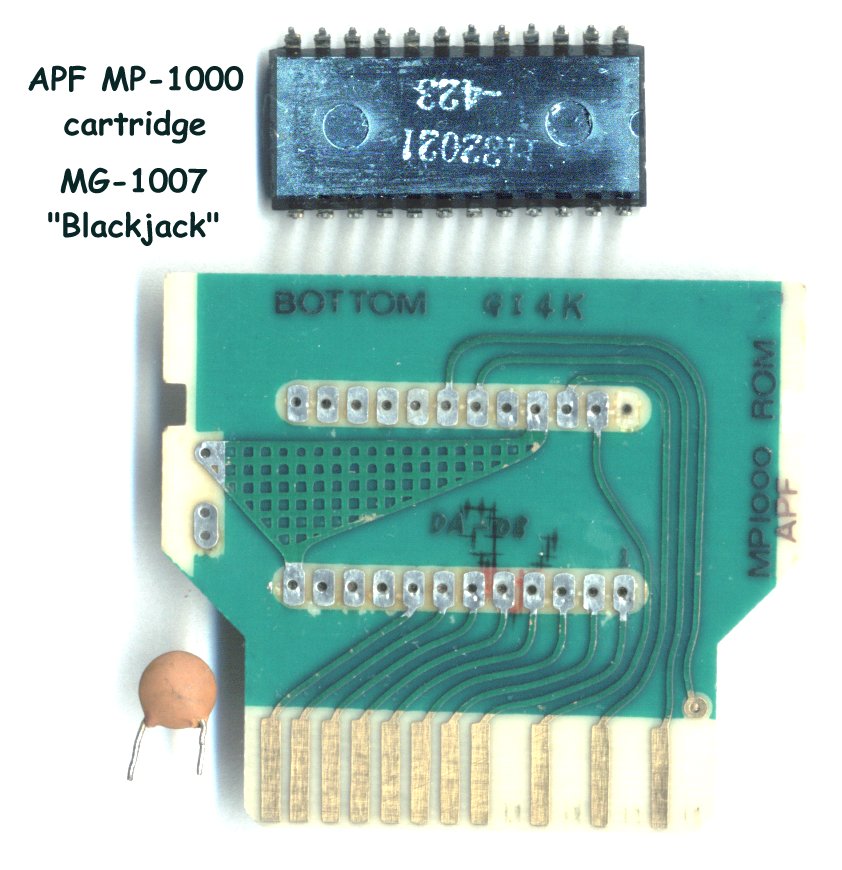

Solder side of cart innards for MG-1007 "Blackjack"


Bowling/Micro Match

Bowling/Micro Match 01
Bowling/Micro Match 02

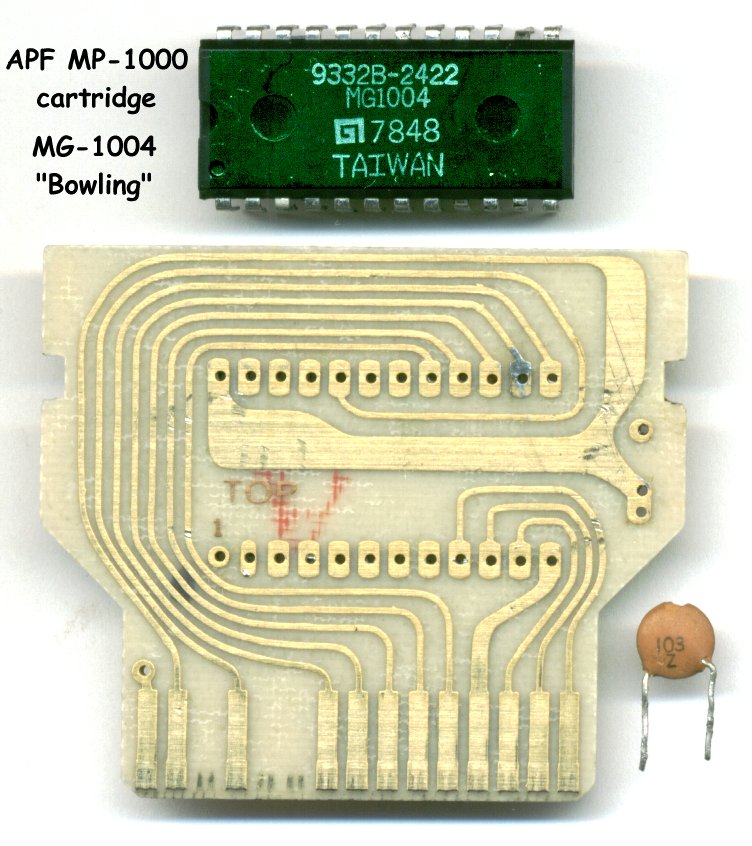

Component side of cart innards for MG-1004 "Bowling"

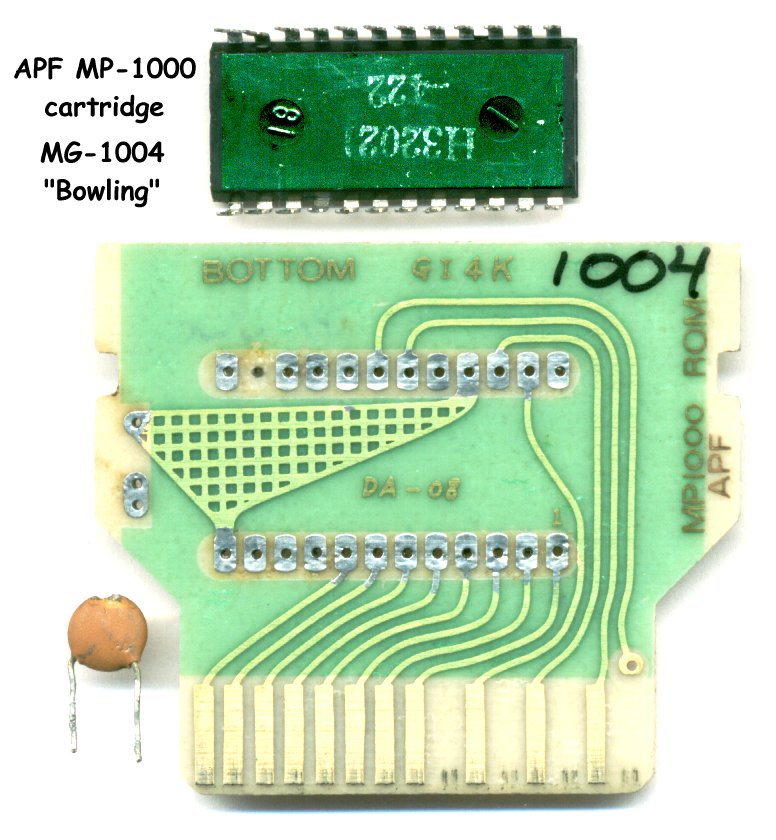

Solder side of cart innards for MG-1004 "Bowling".
(Hand-written "1004" on board is my doing.)


Brickdown/Shooting Gallery

Brickdown/Shooting Gallery 01
Brickdown/Shooting Gallery 02

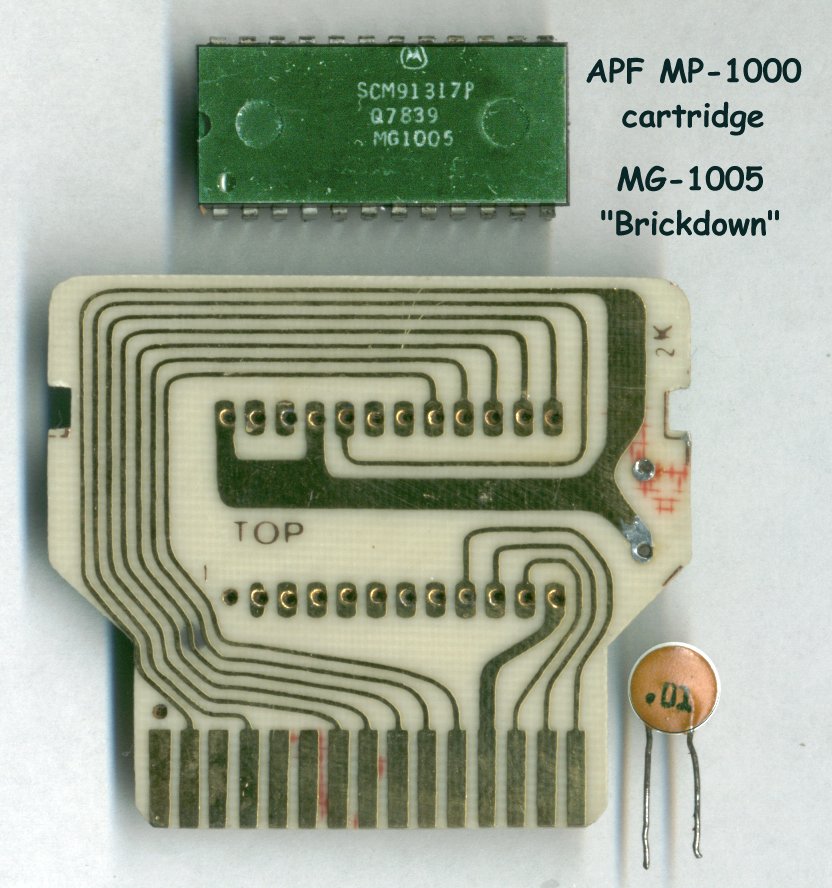

Component side of cart innards for MG-1005 "Brickdown".

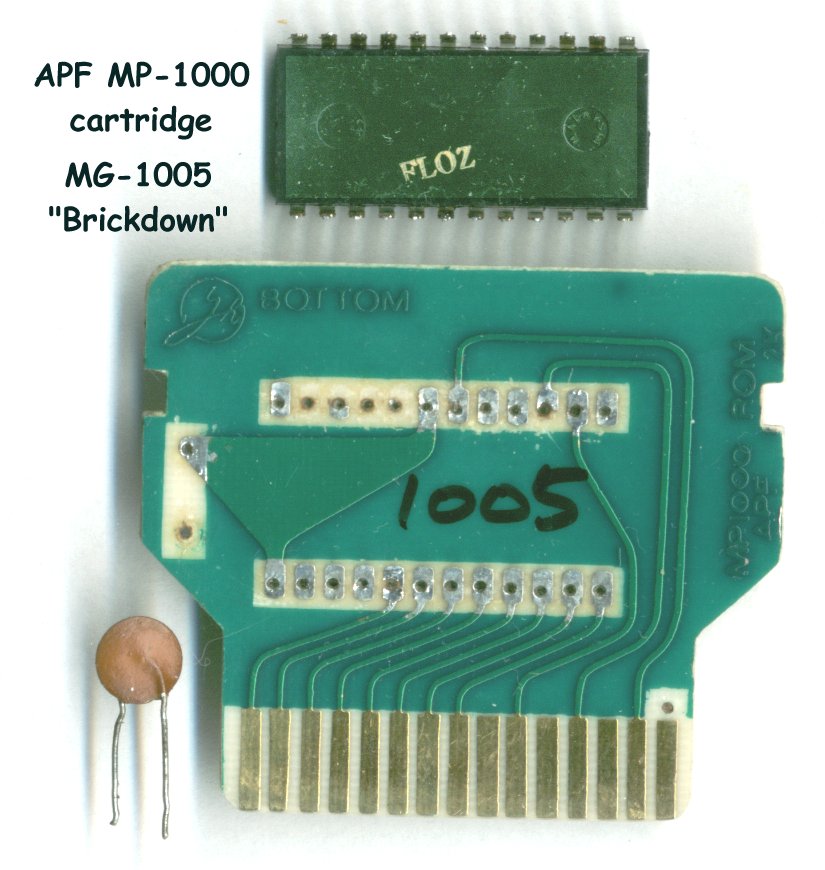

Solder side of cart innards for MG-1005 "Brickdown".
(Hand-written "1005" on board is my doing.)


Casino 1: Slots/Roulette/Keno

Casino 1: Slots/Roulette/Keno 01
Casino 1: Slots/Roulette/Keno 02

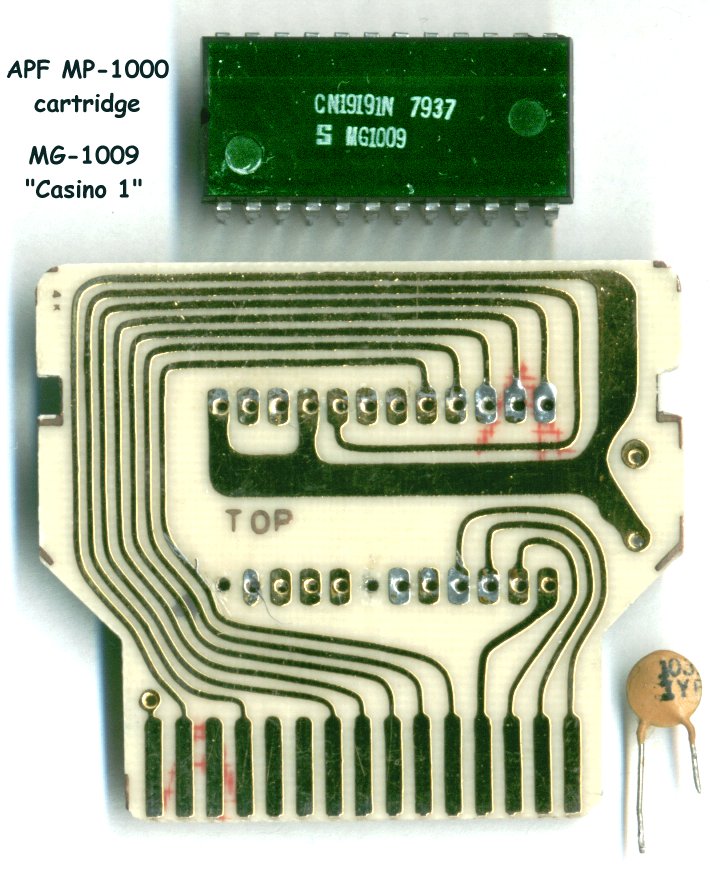

Component side of cart innards for MG-1009 "Casino-1"

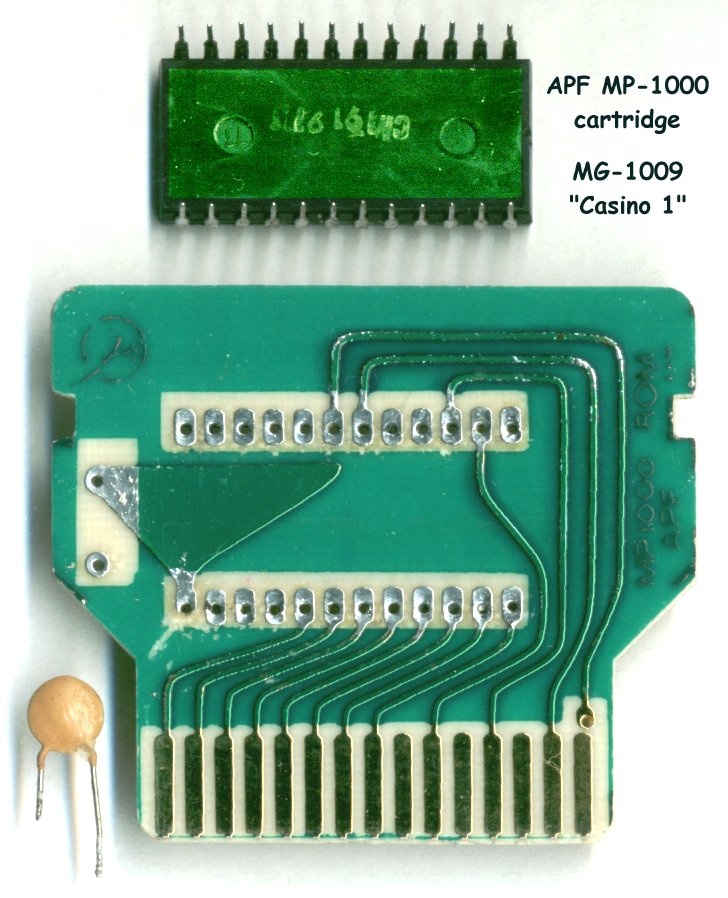

Solder side of cart innards for MG-1009 "Casino-1"


Catena

Catena 01
Catena 02

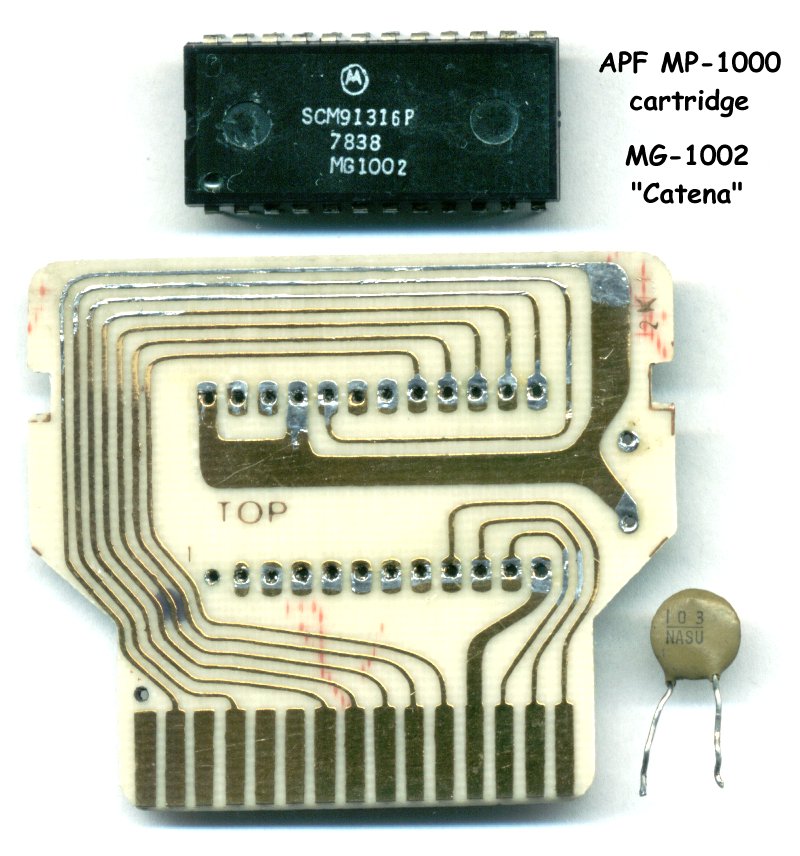

Component side of cart innards for MG-1002 "Catena"

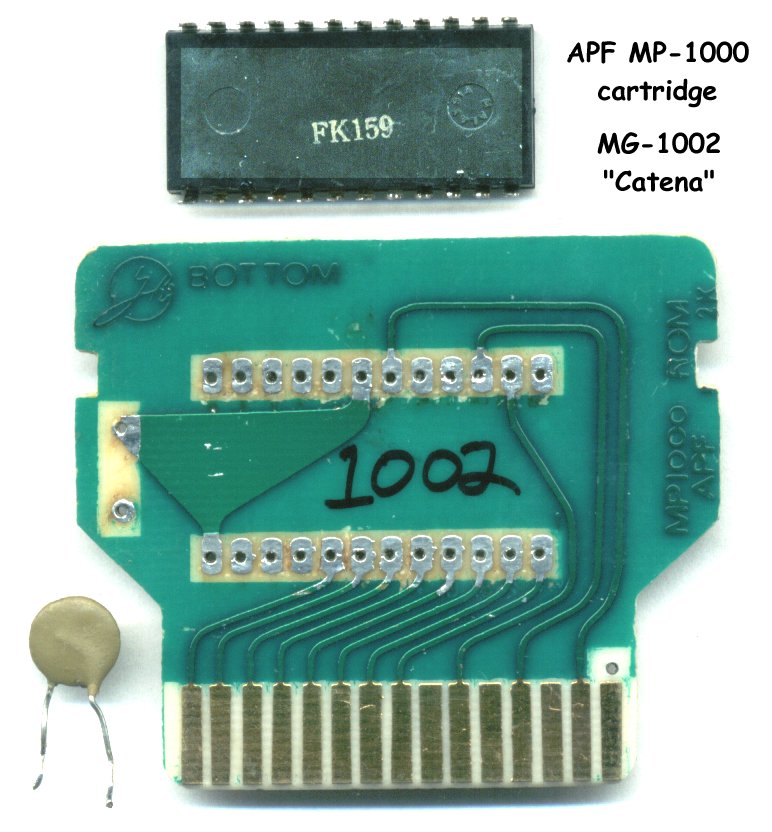

Solder side of cart innards for MG-1002 "Catena".
(Hand-written "1002" on board is my doing.)


Hangman/Tic Tac Toe/Doodle

Hangman/Tic Tac Toe/Doodle 01
Hangman/Tic Tac Toe/Doodle 02

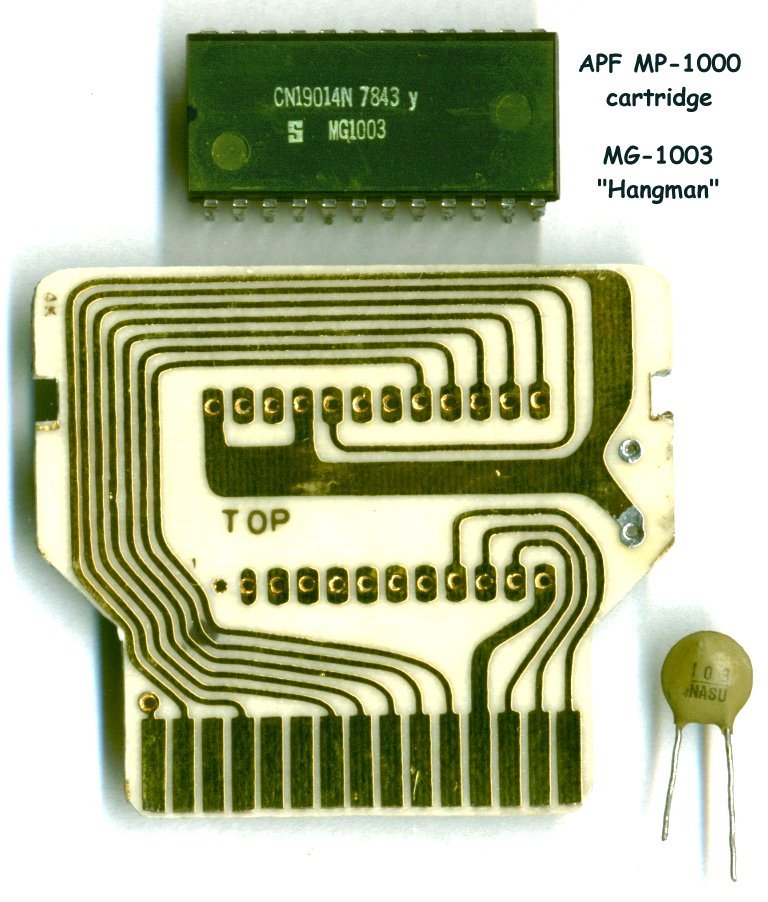

Component side of cart innards for MG-1003 "Hangman"

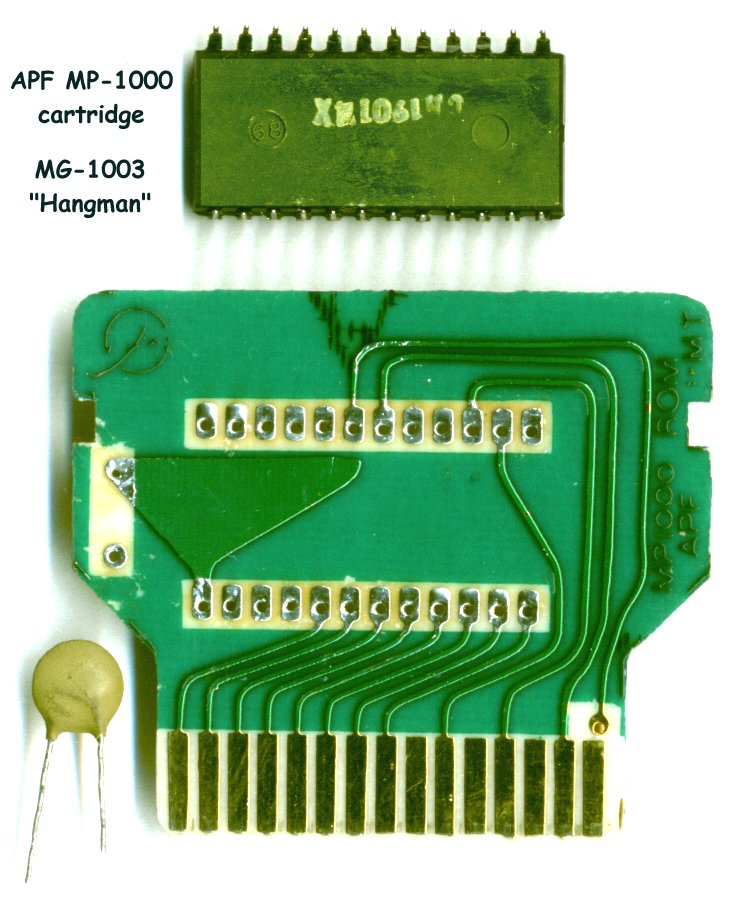

Solder side of cart innards for MG-1003 "Hangman"


Space Destoyers

Space Destroyers

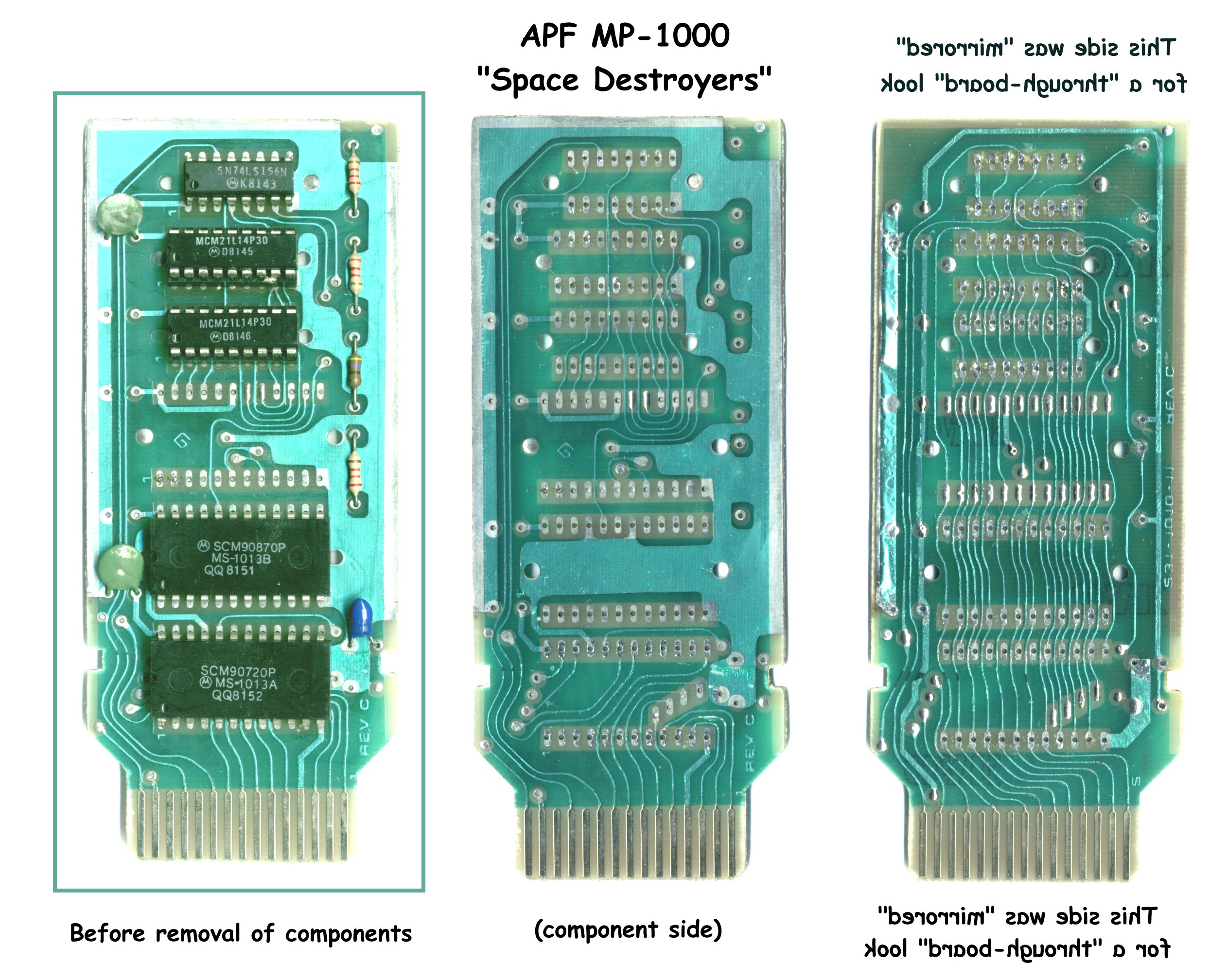

Images of the PC board for "Space Destroyers,"
for reverse-engineering purposes. Component (top)
side is shown with and without components;
and solder side has been mirrored, so holes all
match up well with the component side's view.
("Through-board look".)


UFO/Sea Monsters/Break It Down/Rebuild/Shoot (with variations)

UFO/Sea Monster/et all 01
UFO/Sea Monster/et all 02

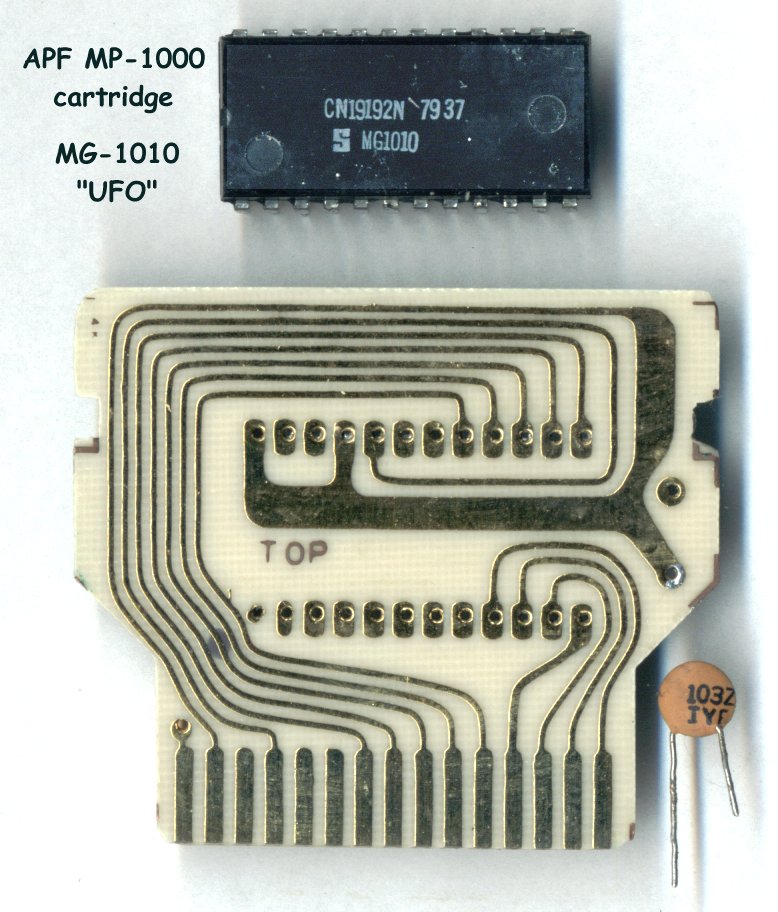

Component side of cart innards for MG-1010 "UFO"

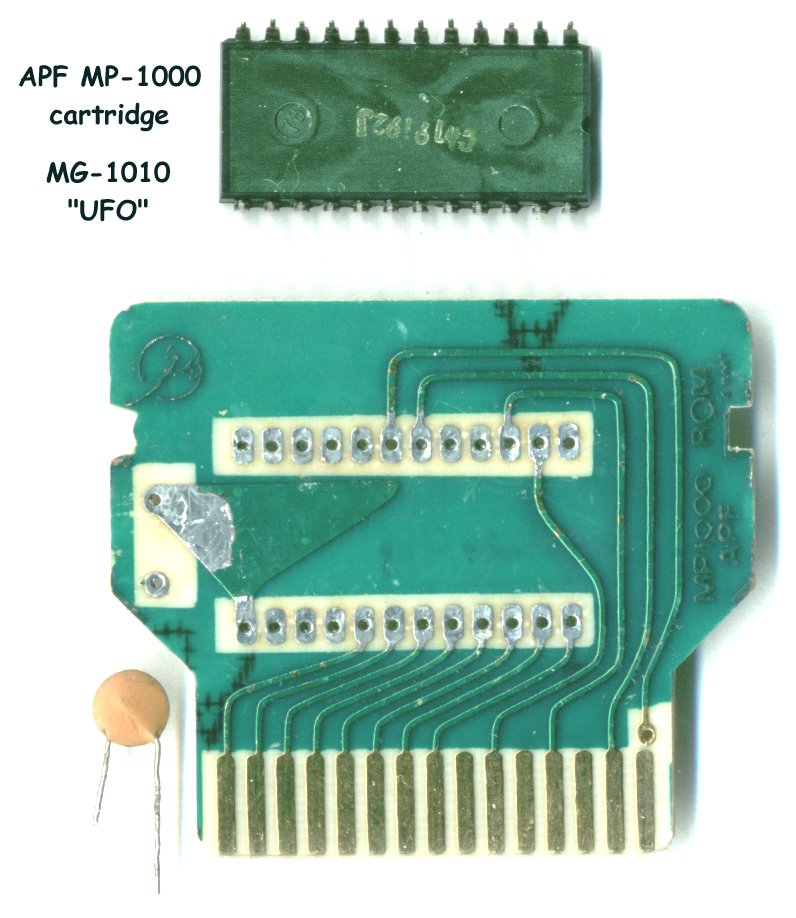

Solder side of cart innards for MG-1010 "UFO"
